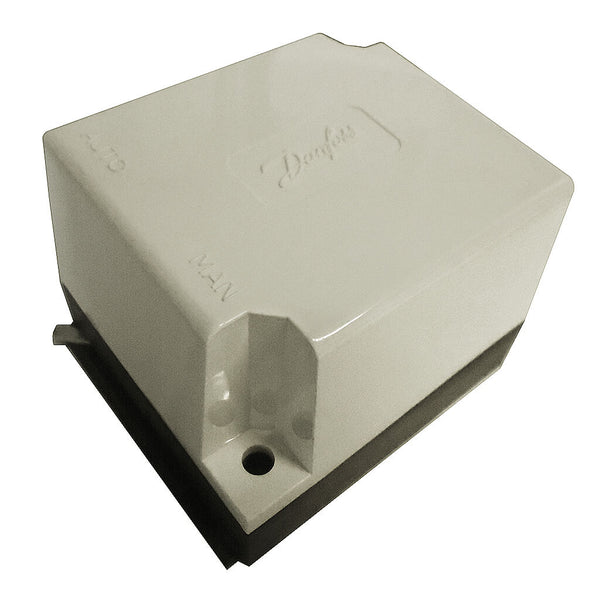

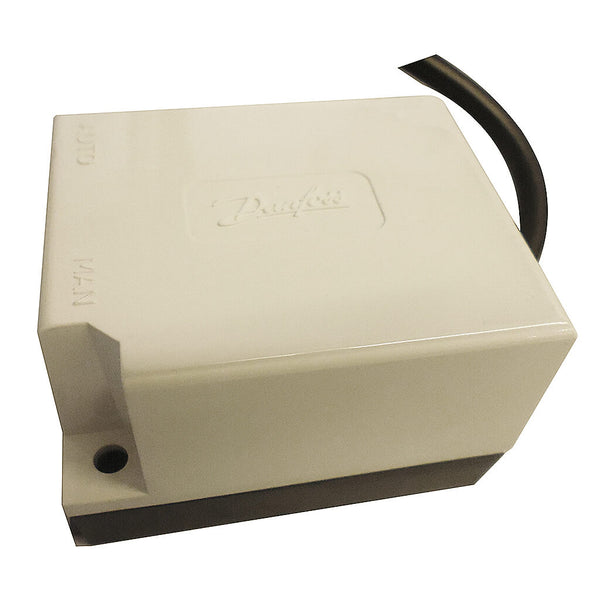

Danfoss 22mm Motorised Valve Complete (HPA2 2 port actuator + 22MM Brass Body)

• Type: HPA2
• Spring return lever for manual operation
• 4 Wire
• Manual Lever
• C/W Danfoss HPV22 Valve Body

he Danfoss HP22 2 port valve can be used with systems that have 22mm copper and iron pipework. The Danfoss HP22 valve has 2 x self-cleaning positive shut off shoes, which helps the flow to go through the 2 port heat plan in either direction (as required).

The H series ‘shoe’ valves are available in 2 port and 2 port versions in a wide range of sizes for both copper and iron pipework. Actuators for mid position, diverter and 2 port on/off applications complete the range. Assembly of the actuator to the valve body is made on site, using the screws provided to make installation easy. The spring return actuators have auxiliary switches and one metre of cable with industry standard wire colours. A lever enables the valves to be opened manually, useful when filling the system. Danfoss valve actuators are designed for direct in-service replacement of actuators on other makes of motorised valves.

The Danfoss Group manufacturers products and services used in cooling food, air conditioning, heating buildings, controlling electric motors and powering mobile machinery.

Features

• Complete valve and actuator set
• 22mm compression coupling
• 2-Port shoe valve (spring return to closed)

Valve bodies and actuators may be purchased separately or in convenient sets.
